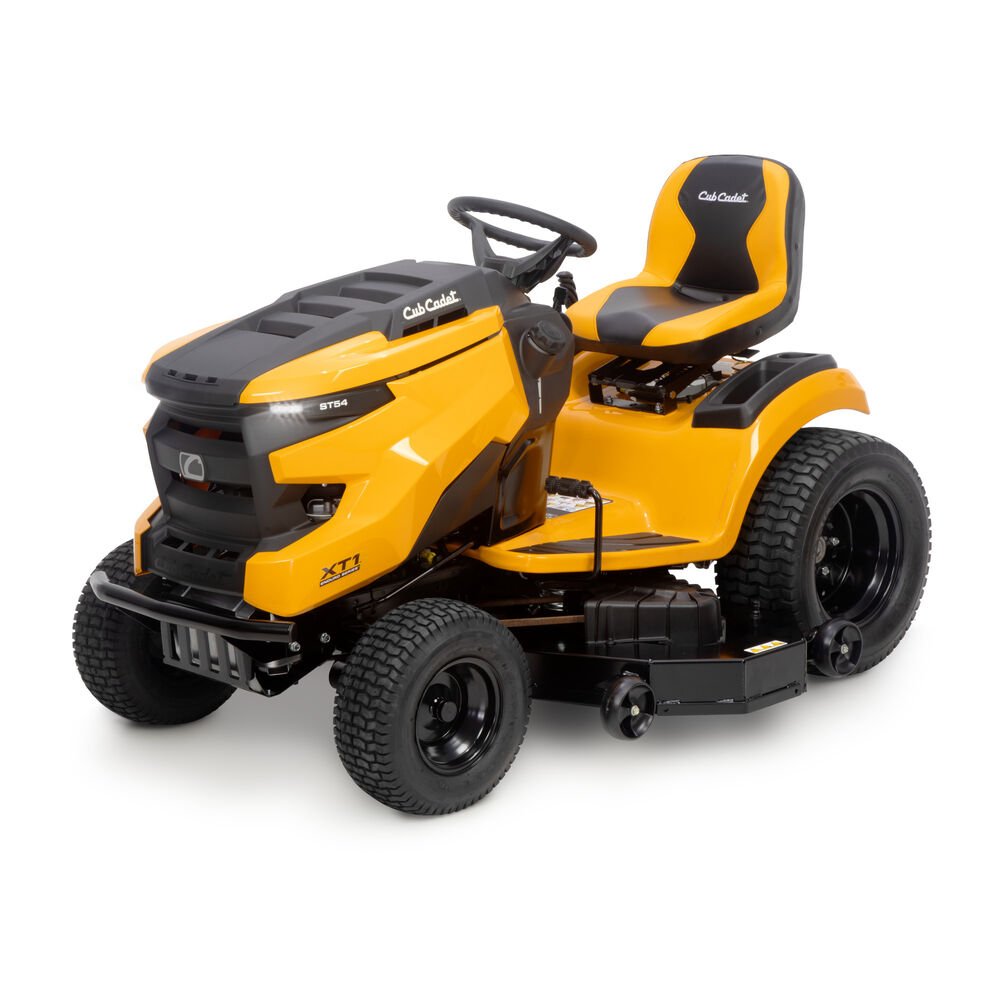

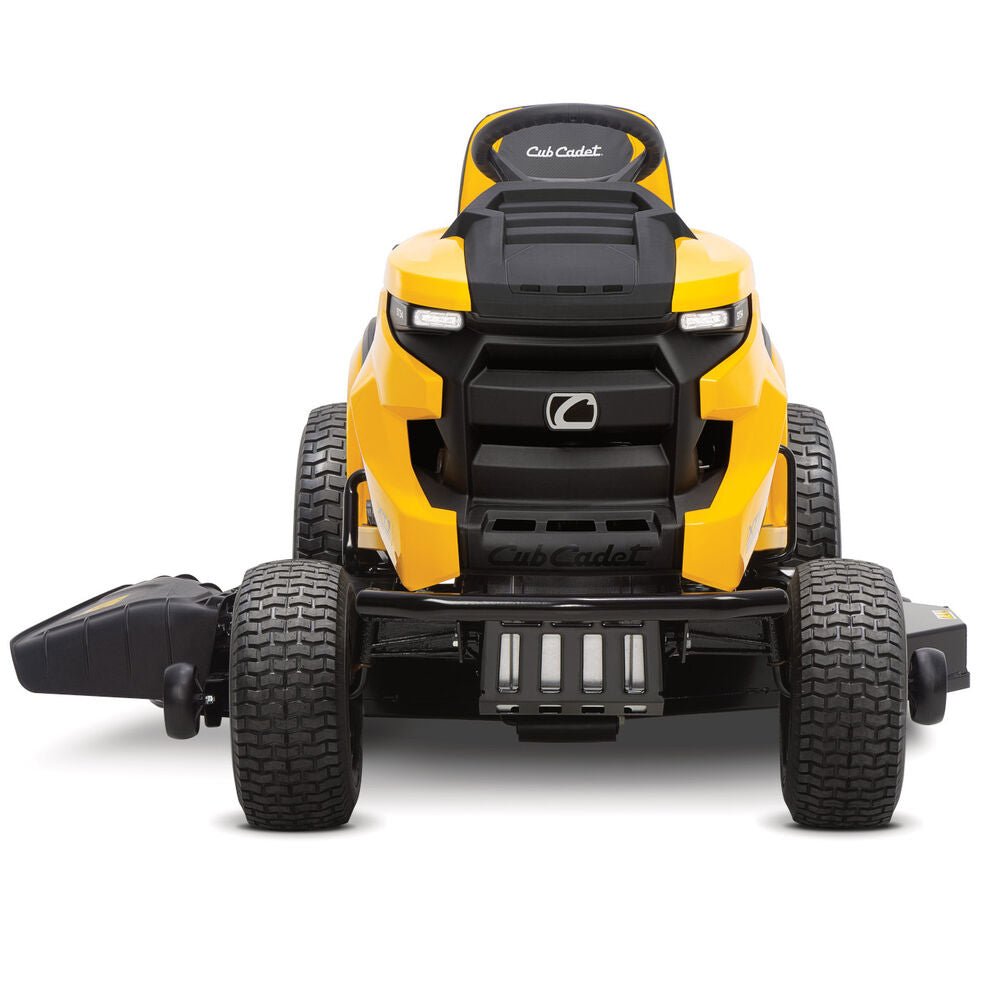

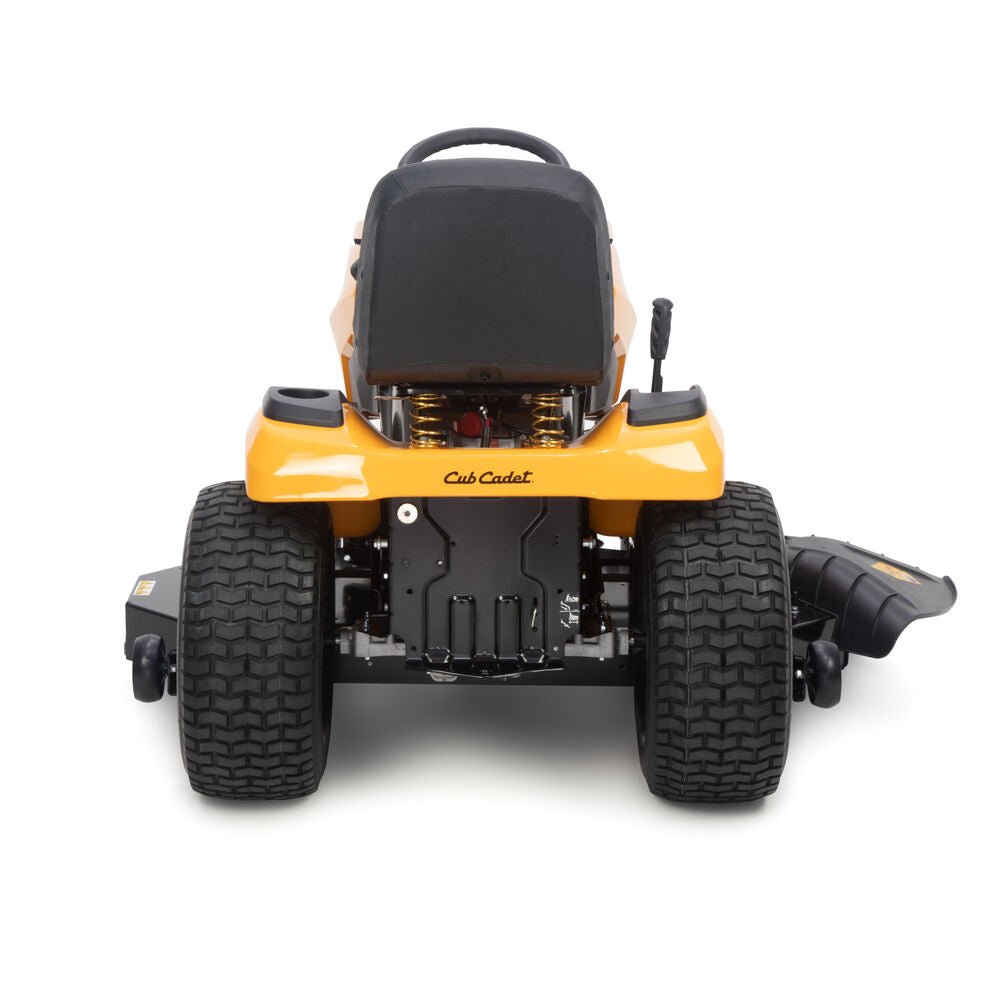

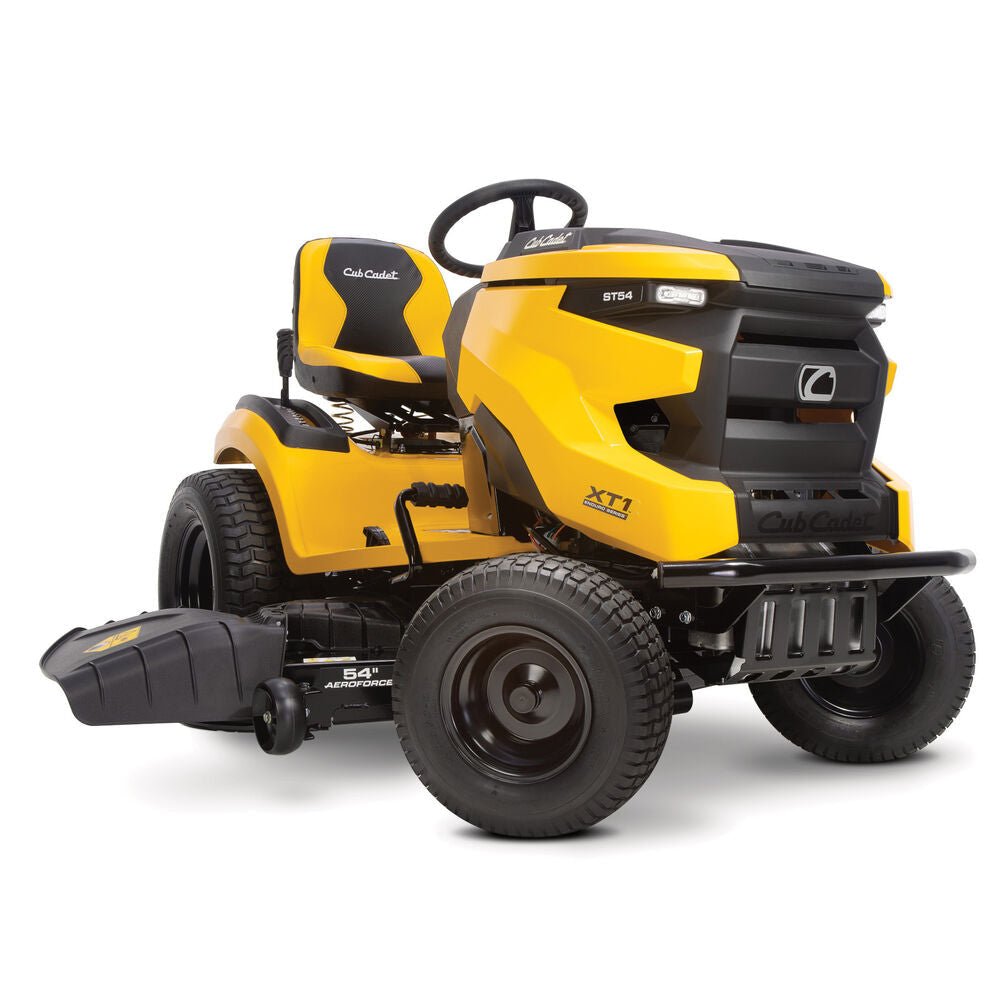

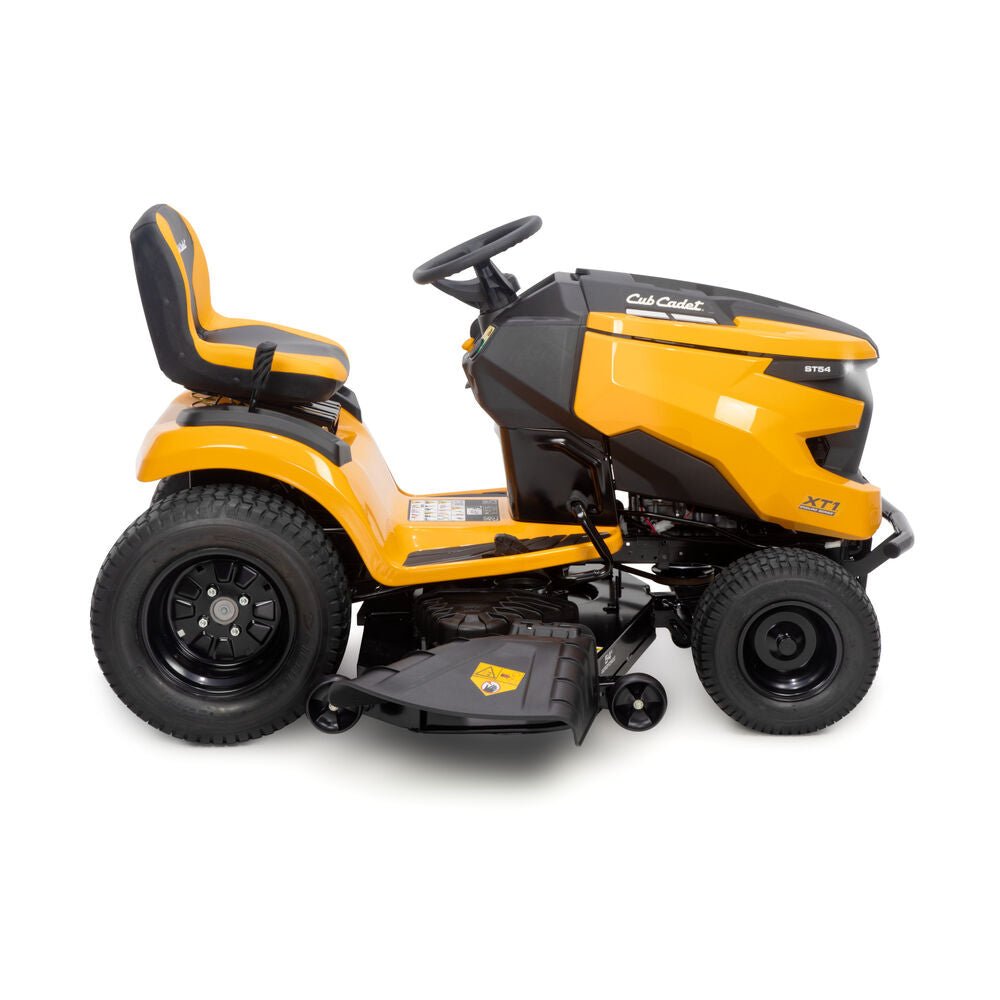

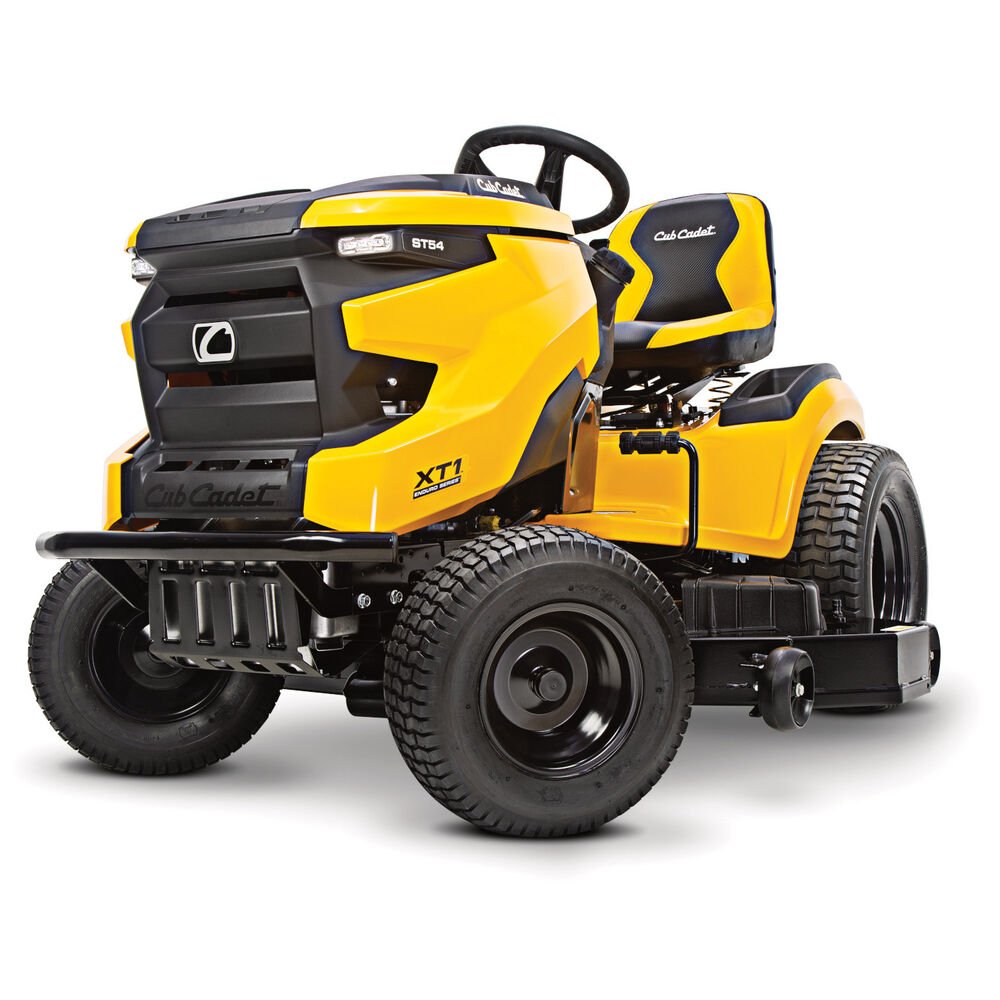

Cub Cadet XT1-ST 54 FAB Lawn Tractor

Cub Cadet XT1-ST 54 FAB 24 HP Lawn Tractor

Take on large lawns with confidence using the Cub Cadet XT1-ST 54 FAB, a powerful residential lawn tractor engineered for dependable performance, excellent cutting quality, and comfortable operation. Designed for properties ranging from approximately 2 to 4 acres, this tractor combines a strong Kohler engine, a wide fabricated cutting deck, hydrostatic drive, and durable construction to make demanding mowing jobs faster and easier.

Powerful 24 HP Kohler Engine

At the heart of the XT1-ST 54 FAB is a 24 HP Kohler 7000 Series KT724 twin-cylinder engine with a displacement of 747cc. This commercial-inspired V-twin engine provides smooth, consistent power for mowing large areas, working through thicker grass, and maintaining dependable blade speed under changing lawn conditions.

The twin-cylinder design helps reduce vibration while delivering balanced power and reliable performance. A generous 3-gallon fuel tank allows you to cover more ground between refueling stops, making the tractor well suited for larger residential properties.

54-Inch Fabricated AeroForce Cutting Deck

The tractor is equipped with Cub Cadet’s 54-inch AeroForce fabricated cutting deck, constructed from durable 11-gauge steel for additional strength and long-term resistance to demanding mowing conditions.

Its triple-blade cutting system is designed to optimize airflow beneath the deck and create strong suction that lifts grass before it is cut. This helps deliver Cub Cadet’s clean and consistent Signature Cut, while also reducing grass clumping during side discharge and improving collection performance when used with an appropriate bagging system.

With 12 cutting-height positions ranging from 1 to 4 inches, you can easily adjust the mowing height to match seasonal conditions, grass type, and your preferred lawn appearance.

Smooth Hydrostatic Transmission

A Tuff Torq K46 hydrostatic transmission provides smooth, foot-pedal-controlled acceleration without the need to stop and manually change gears. Simply press the pedal to adjust your speed, allowing you to slow down around landscaping and obstacles or increase speed across open sections of the lawn.

The tractor reaches speeds of up to:

• 5.5 mph forward
• 3.1 mph in reverse

This intuitive drive system offers precise control and makes the XT1-ST 54 FAB comfortable to operate for both experienced users and first-time lawn tractor owners.

Tight, Responsive Handling

Despite its wide 54-inch cutting deck, the XT1-ST 54 FAB offers a tight 16-inch turning radius for responsive maneuverability around trees, flower beds, pathways, and other landscaping features. The steering system provides a nimble, almost zero-turn-like feel while retaining the familiar operation and stability of a traditional lawn tractor.

A durable cast-iron front axle adds strength and stability, while dependable disc brakes provide confident stopping performance.

Heavy-Duty Frame Construction

The tractor is built around a strong, robotically welded frame designed for structural consistency and lasting durability. An e-coating corrosion-protection system helps protect the frame from moisture, grass debris, and other harsh outdoor conditions.

This rugged construction makes the tractor suitable for regular residential use throughout the mowing season while helping preserve its appearance and structural integrity over time.

Operator Comfort and Convenience

Cub Cadet designed the XT1-ST 54 FAB with several comfort-focused features to make longer mowing sessions more enjoyable. The 15-inch high-back seat provides supportive positioning and includes seat-spring suspension to help absorb bumps and vibration.

A convenient lever-adjustment system allows the seat position to be customized for different operators. Additional comfort and convenience features include:

• Soft-touch cruise control for maintaining a consistent mowing speed
• Traction-pad floor mats for improved grip
• Dual LED headlights for better visibility in low-light conditions
• Convenient foot-pedal speed control
• Easy-to-reach operating controls
• Electronic fingertip cutting-deck engagement

QuickAttach Deck System

The QuickAttach deck system is designed to simplify deck removal and installation without requiring tools. This makes it easier to access the deck for cleaning, inspection, blade maintenance, or seasonal servicing.

The electronic fingertip deck-engagement control allows the operator to engage or disengage the blades quickly and conveniently from the driver’s position.

SmartJet Deck-Washing System

Keeping the cutting deck clean is easier with Cub Cadet’s patented SmartJet high-pressure deck-washing system. The integrated wash port allows a garden hose to be connected directly to the deck, helping flush away grass clippings and accumulated debris from underneath.

Regular deck cleaning can help maintain airflow, cutting performance, and discharge efficiency while reducing the buildup of wet grass around the blades and deck housing.

Reliable Starting Power

A 210 cold-cranking amp AGM battery provides dependable starting power. AGM battery construction is designed to offer reliable performance with reduced maintenance requirements compared with many conventional battery designs.

Recommended Property Type

The Cub Cadet XT1-ST 54 FAB is recommended for mowing approximately 2 to 4 acres of mostly flat terrain. Its wide cutting path makes it especially effective on larger, open lawns, while its tight turning radius helps it navigate common residential obstacles.

Warranty Protection

For additional peace of mind, the Cub Cadet XT1-ST 54 FAB is backed by a 3-year unlimited-hour residential warranty, including powertrain coverage. Warranty terms and exclusions may vary, so owners should review the official Cub Cadet warranty documentation for complete coverage information.

Key Specifications

• Engine: Kohler 7000 Series KT724 V-twin
• Engine power: 24 HP
• Displacement: 747cc
• Cutting width: 54 inches
• Deck construction: Fabricated 11-gauge steel
• Blade system: Three blades
• Cutting heights: 12 positions
• Cutting-height range: 1 to 4 inches
• Transmission: Tuff Torq K46 hydrostatic
• Drive control: Foot pedal
• Maximum forward speed: 5.5 mph
• Maximum reverse speed: 3.1 mph
• Turning radius: 16 inches
• Fuel capacity: 3 gallons
• Battery: 210 CCA AGM
• Front axle: Cast iron
• Deck engagement: Electronic fingertip control
• Deck attachment: QuickAttach tool-free system
• Deck cleaning: SmartJet high-pressure wash system
• Seat: 15-inch high-back with spring suspension
• Lighting: Dual LED headlights
• Recommended lawn size: Approximately 2 to 4 acres
• Recommended terrain: Mostly flat
• Warranty: 3-year unlimited-hour residential warranty, including powertrain
